UNIVERSAL GRINDING SOLUTIONS FOR EXTRA-LARGE PARTS

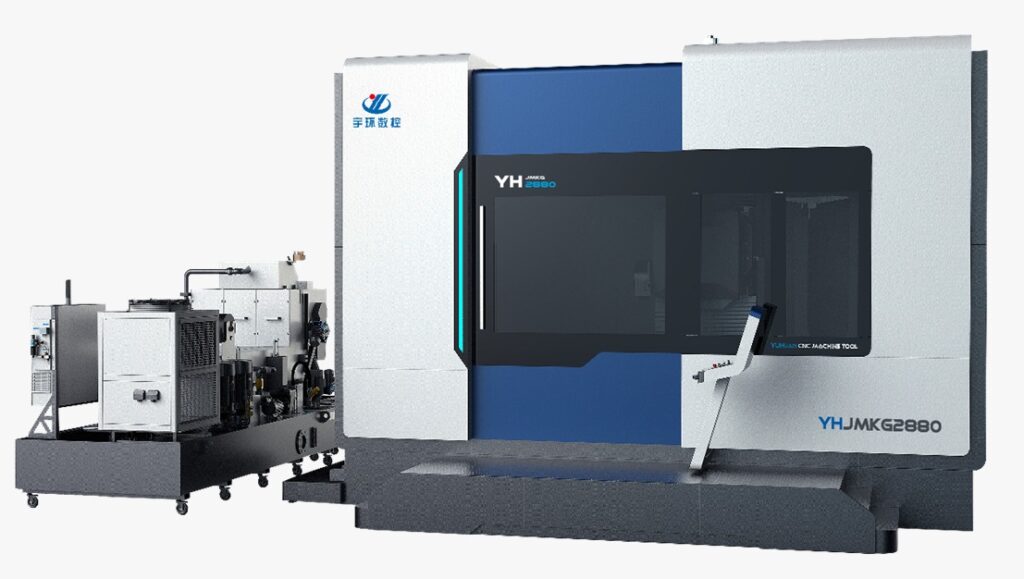

Vertical CNC Universal Grinding Machine

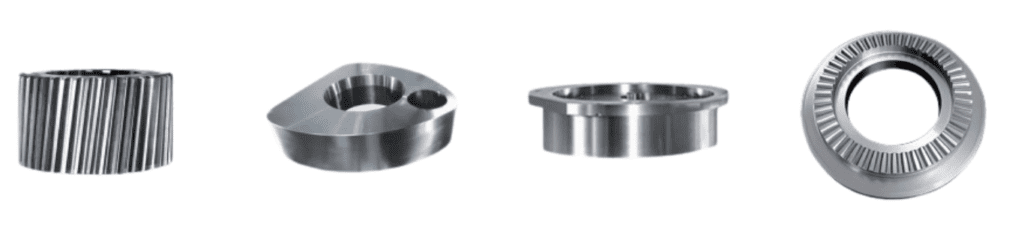

YH CNC Vertical Universal Grinding Machine is designed for processing parts with high precision and high surface quality requirements in equipment, military, energy, aerospace and other manufacturing industries. It aims to process the ID, OD, conical surface, end surface and special-shaped surface contour of disc, ring and sleeve parts. The processing precision grade can reach IT3 ~ IT2, and the surface roughness ≤ Ra 0.2.

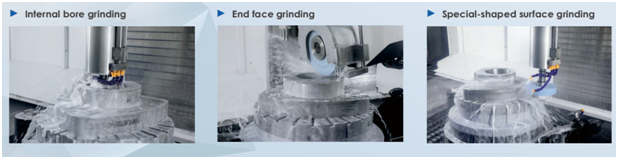

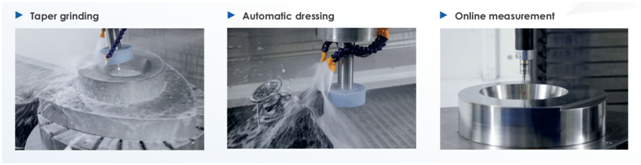

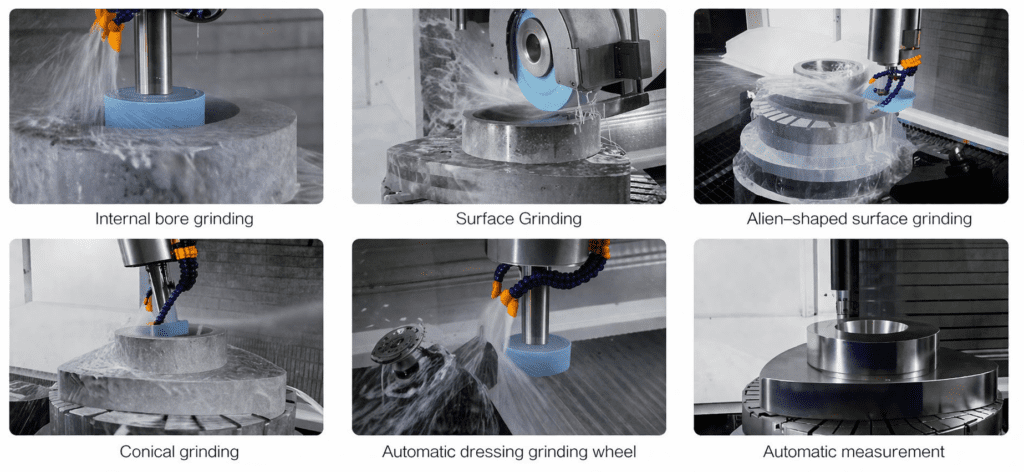

Grinding Principle & Application

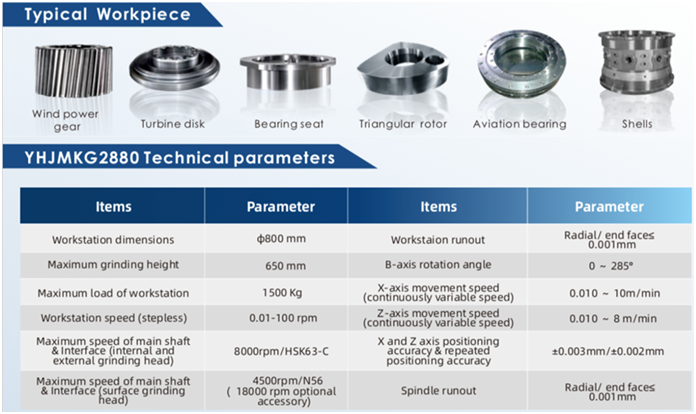

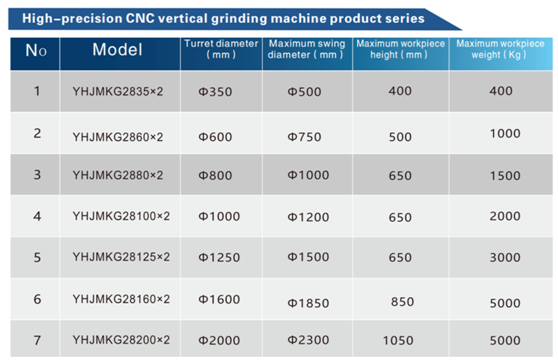

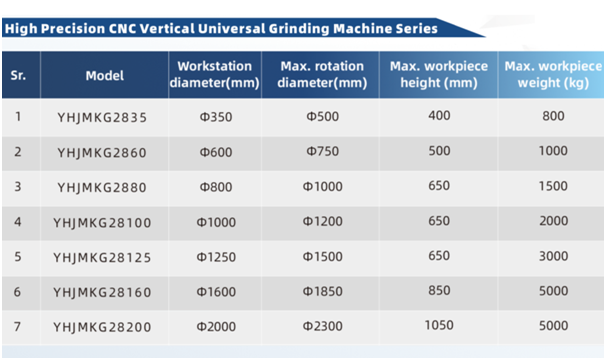

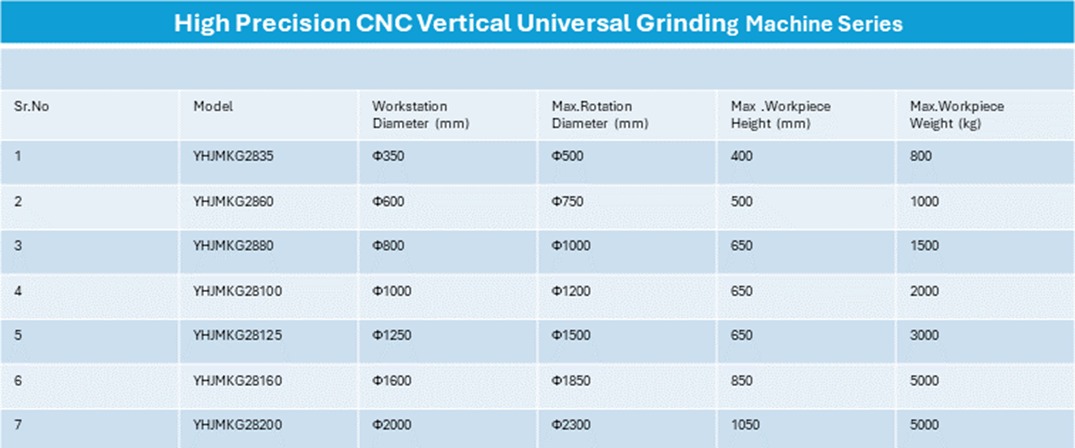

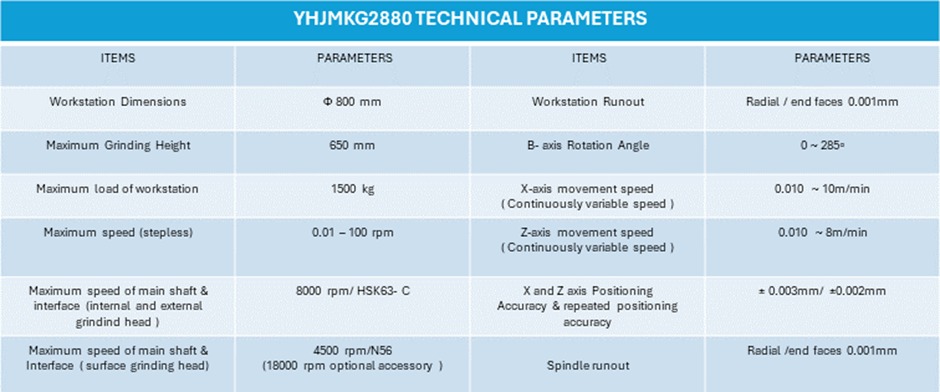

Machine Specification
