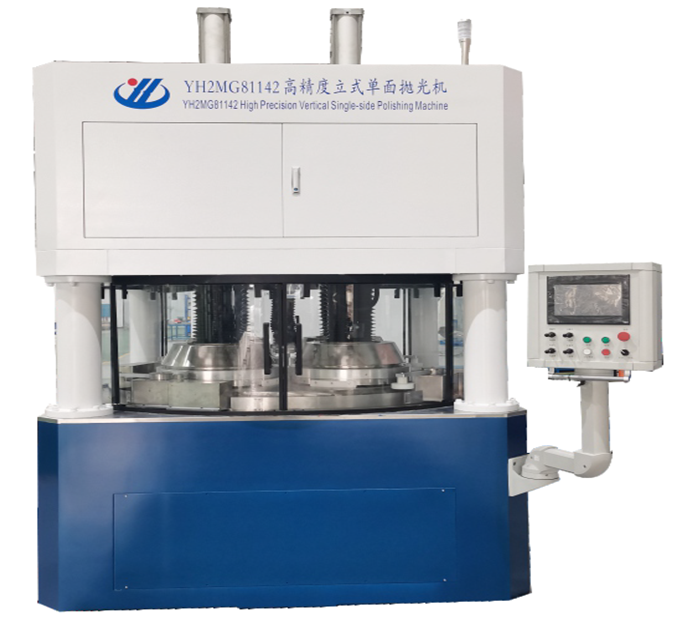

YH2MG81 SERIES HIGH PRECISION VERTICAL SINGLE SURFACE LAPPING (POLISHING) MACHINE
YH2MG81 SERIES HIGH PRECISION VERTICAL SINGLE SURFACE LAPPING (POLISHING) MACHINE
This machine is mainly used for high-precision single-sided lapping/polishing of thin-sheet parts made of silicon carbide, sapphire, gallium nitride, zirconium oxide, silicon nitride, beryllium nitride, aluminum oxide, aluminum nitride ceramics and other materials, and can achieve high-precision processingrequirements for part planes.
MAIN FEATURES
- This machine adopts vertical structure layout, the main structureadopts high-performance castings, and the entire machine tool hasexcellent rigidity.
- The workpiece plate of this machine is equipped with anindependent servo drive, the electric proportional valve accuratelyadjusts the pressure, and the transmission is smooth.
- The upper and lower discs have independent constanttemperature systems to effectively control the temperature changesin the processing area and ensure processing accuracy.
- The upper disc is a universal adaptive structure, and the upperand lower discs fit well, effectively ensuring the surface processingaccuracy of the workpiece.
- Manual and automatic dual operation mode switching. In manualmode, it is convenient to adjust the process parameters, and inautomatic mode, it processes according to the set program.
- It adopts PLC control and dedicated HMI interactive interface,with flexible and reliable control and friendly human-machineinterface

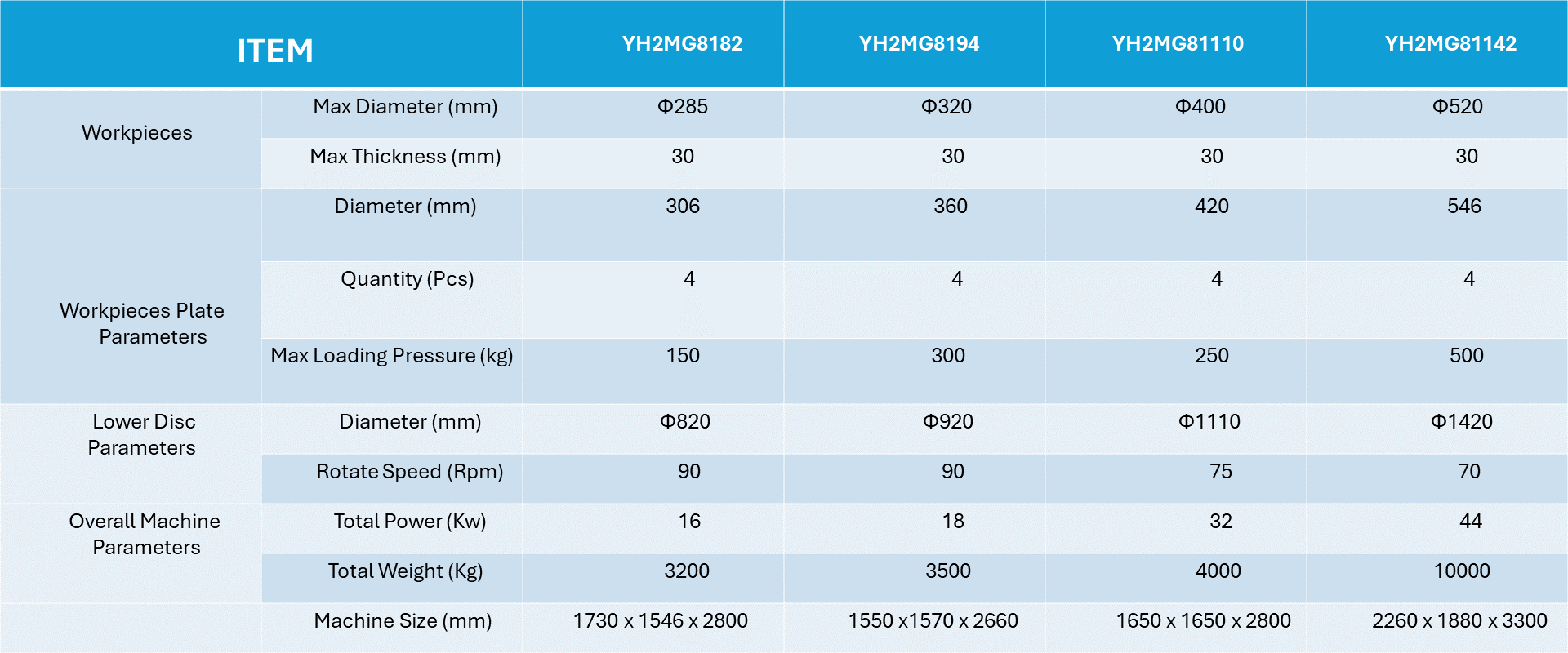

MAINTECHNICAL PARAMETERS
TYPICAL PROCESSING PARTS
