YH2MG84125 HIGH PRECISION VERTICAL DOUBLE SURFACE GRINDING LAPPING(POLISHING) MACHINE
This machine is an automatic, high-efficiency machine , mainly used for lapping polishing the plane ofparts. It uses CBN grinding wheels, diamond grinding wheels, diamond grinding pads, lapping discs, etc. toperform efficient and precise double-sided lapping polishing of metals such as steel, copper, hard alloys,glass, ceramics, non-metallic hard and brittle materials, and semiconductor materials.
MAIN FEATURES
- Four motors independently driven, stepless speed regulation,stable operation, no impact, small vibration, excellent processadaptability.
- Upper disc shape detection and temperature detectionsensors, real-time online detection of workpiece thickness anddisc deformation adjustment.
- The lower plate adopts high-precision turntable bearing toensure the accuracy and stability of the lower plate.
- Equipped with high-precision airbag pressurization system toachieve precise control of three-stage pressure: pre-pressure,main pressure and post-pressure.
- The machine is equipped with a thermal balance temperature system to ensure that the upper and lower plates do notdeform and ensure processing accuracy.
- It adopts PLC control and dedicated HMI interactive interface,with flexible and reliable control and friendly human-machineinterface.

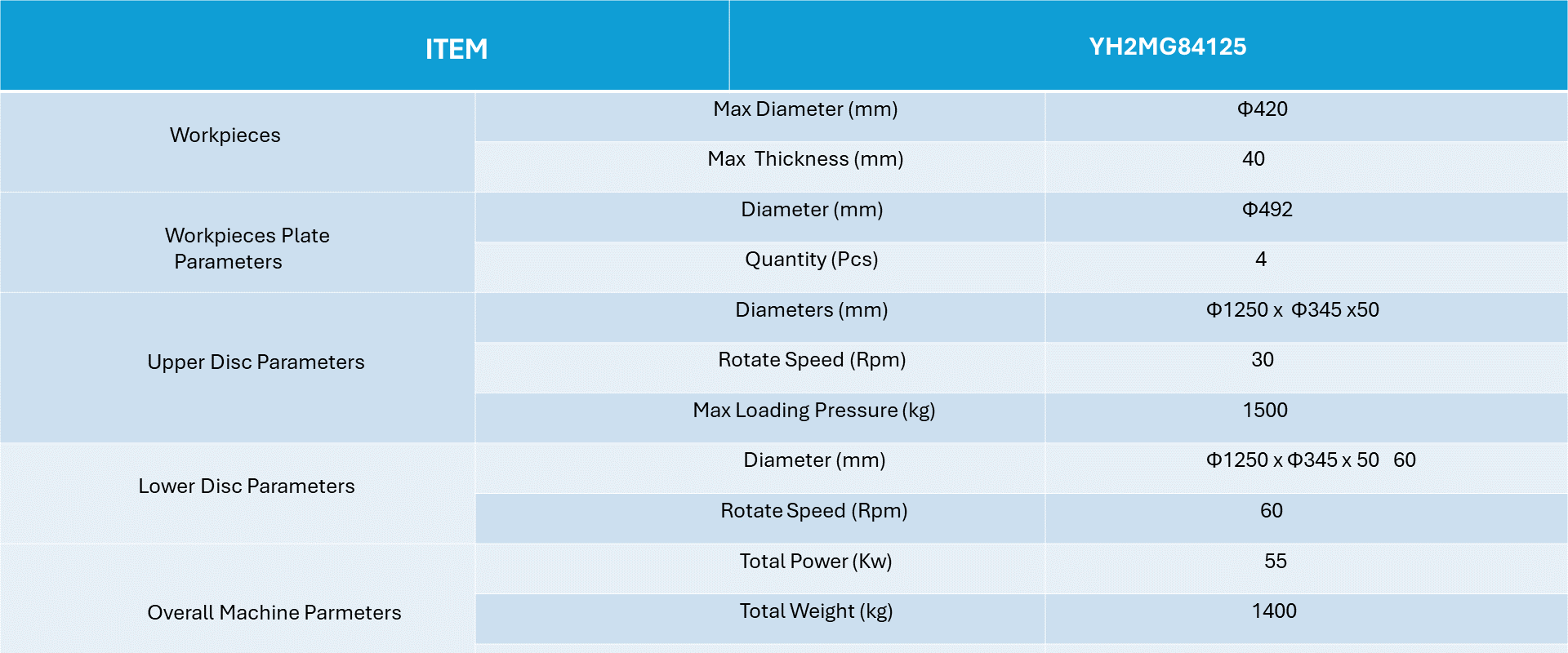

MAINTECHNICAL PARAMETERS
TYPICAL PROCESSING PARTS
